Specifications:
Condition:
New
Year:
2025
Make:
Pilot crushtec
Description:

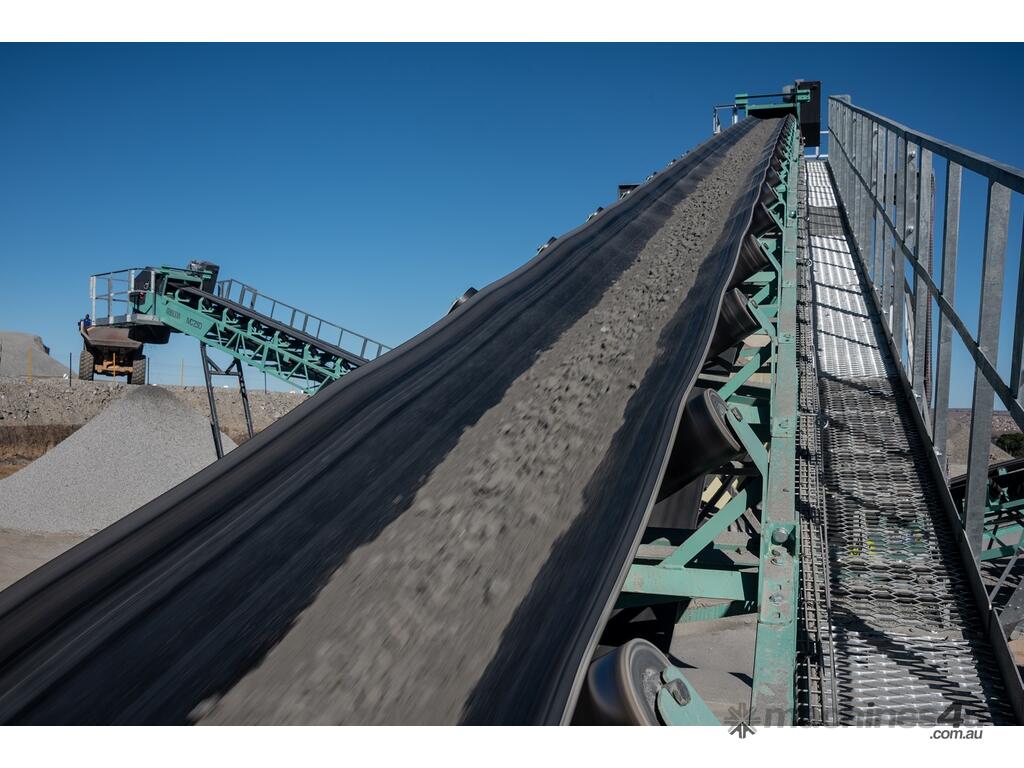

The Pilot Modular MC1050 is the heavy-duty end of Vastum's conveyor range, built for the highest throughput of the three widths. It's supplied in four lengths – 11m, 16m, 21m and 26m – handling coal, aggregates, sand, construction and demolition waste, mine ore, crushed rock and river gravel.
Like the MC600 and MC750, it's wheel-mounted for easy repositioning with an optional base plate, and integrates with other Pilot Modular equipment or runs as a stand-alone unit feeding an existing transfer point within a crushing and screening plant.
Technical Specifications:
- Throughput up to 800tph (based on material with 1.6t/m³ density)
- Belt speed 1.8m/s standard, Class 500 4-ply belting
- SABS 127mm diameter idlers – 20° at feed/discharge ends, 35° along the length
- Rubber-lagged drive drum, crowned and slatted tail drum
- Self-tensioning primary belt scraper on the drive drum, plough scraper on the tail drum
- V-belt driven helical reduction gearbox drive
- Height-adjustable support on pneumatic tyres or base plate; slewing axles on all four lengths, with electric slew drive available as an option (3kW on the 11m/16m, 5.5kW on the 21m/26m)
- Full-length 500mm walkways with wrap-around head section
- Feed boot with rubber skirting and impact bed
- Angle adjustment 14°–19°
Options:
- Motorised slew drive
- Wheels or base-plate support
- Dust covers
Dimensions:
- 11m – 22kW motor, approx. 8,500kg
- 16m – 22kW motor, approx. 10,000kg
- 21m – 22kW motor, approx. 12,200kg
- 26m – 30kW motor, approx. 13,300kg
- Working height, reach and support-leg dimensions vary by length and set angle – see spec sheet for the full table
Exclusions:
- Freight, Installation, Electrical works
12-month warranty provided by seller
