Double Deck Vibrating Screen | Wet or Dry | 300tph | 12′ x 5′ |

($124,861 Inc. GST)

Confirm if additional costs apply

Specifications:

Description:

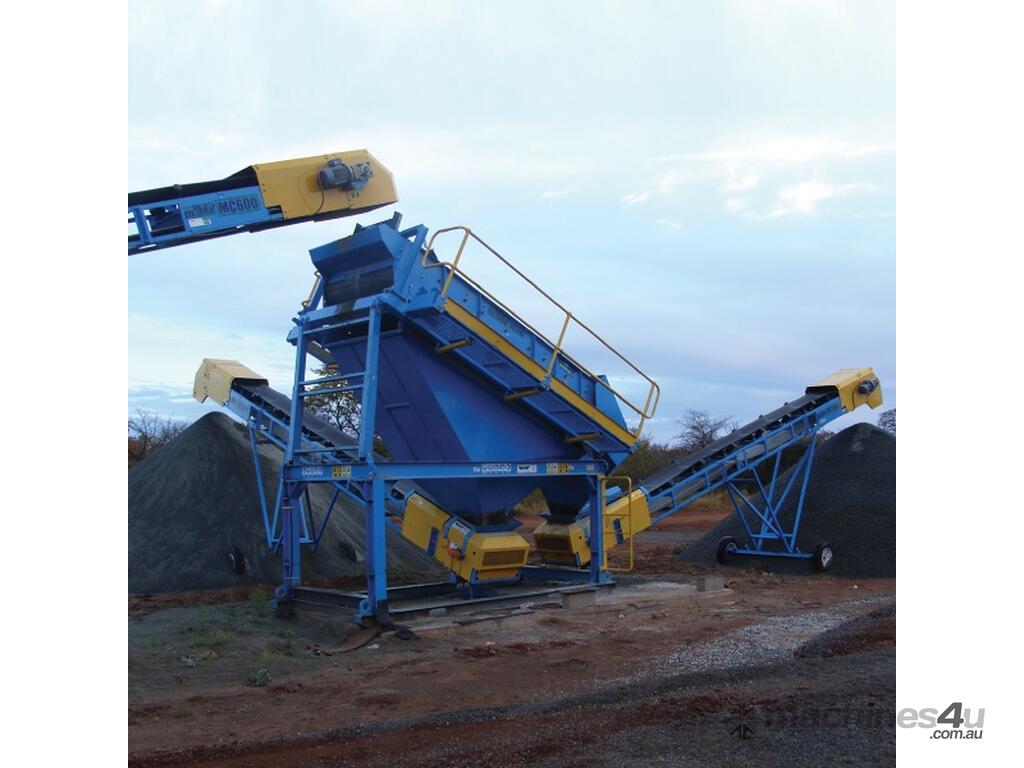

The DD3615 is a double deck vibrating screen and the complete module comes standard as a semi-mobile, skid mounted screen.

This screen is designed to be operated as a primary or secondary screen, using a diverse range of screening media. This screen box allows for a wide variety of media choices such as mesh or piano wire.

The DD3615 can be configured for either wet or dry screening applications.

The DD3615 is particularly well suited to final screening and sand screening up to a maximum throughput of 300tph.

Technical Specifications:

• 3650mm x 1520mm (12’ x 5’) open screen area
• Top Deck: Square mesh, side tensioned
• Bottom Deck: Square mesh or piano wire, end tensioned
• Inclined adjustable screen angle support frame
• Maximum 100mm feed size
• Throughput up to 300tph (material dependent)
• 11kW motor

Dimensions:

– 3700mm wide x 6000mm long x Variable Height

Options:

• Wet Screening Pack including:
• Top deck – bolt on frame with manifold box and adjustable spray bars and nozzles
• Bottom deck – bolt on spray bars and nozzles
• Top or bottom deck as finger screens
• Low friction sandbox liners
• Double outlet sandbox
• Removal of mounting frame and chutes

Exclusions: Freight, Installation, Electrical works

Note: different paddles might need to be supplied, based on application. Unit can also be retrofitted with a pump for liquid waste recovery.

Please reach out to discuss your application or a site visit.

12-month warranty provided by seller
