$133,430.00 + GST
($146,773 Inc. GST)
Confirm if additional costs apply
Specifications:
Condition:
New
Year:
2025
Make:
Pilot crushtec
Description:

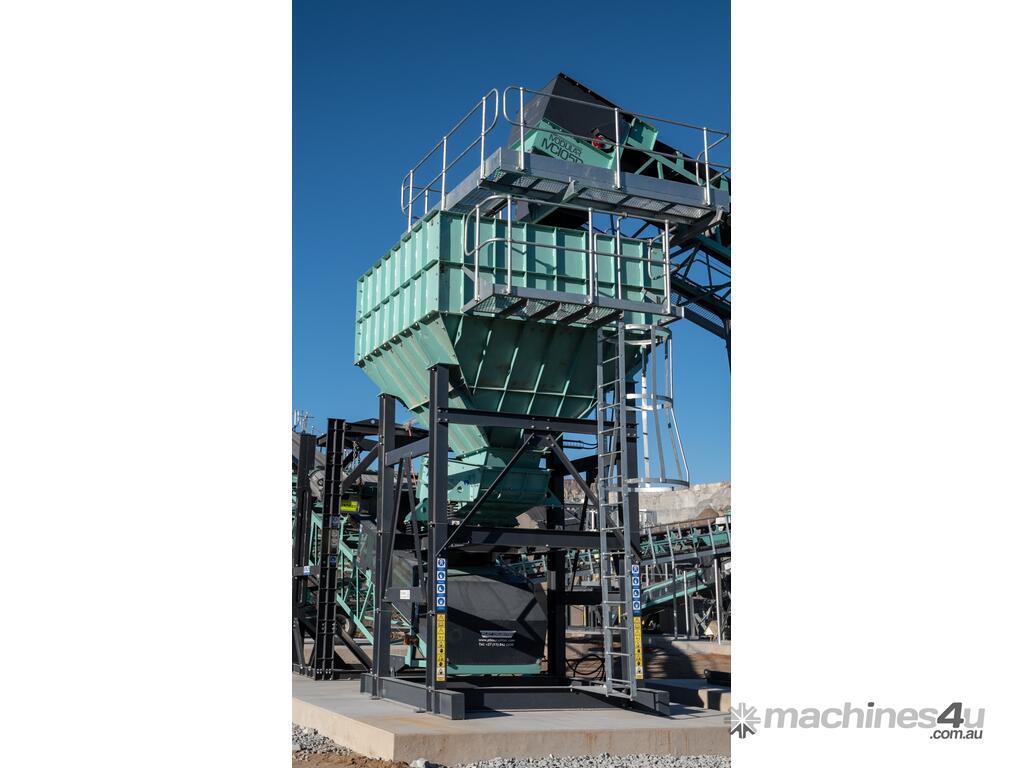

The MFH25 is a 25 tonne capacity, heavy-duty, fit-for-purpose, feed bin for mining, quarrying and recycling operations.
The MFH25 is well-suited for standalone operations and acts at a controlled rate, feeding material onto a conveyor for transfer to a crusher or screen for further processing.
This module comes standard on a skid frame which does not require any civils for installation and commissioning.
A proportional level sensor is supplied for controlling discharge rate where required.
Technical Specifications:
- Steel feeder mounted on 6 isolation coil springs
- Modular construction with two discharge height options
- 25t capacity
- Wear plates on impact areas
- Ultrasonic level sensor for feeder control
- 2 x 2.2kW motors
Dimensions:
- 4645mm wide x 3160mm long x 4800mm (or 5610mm) high
Exclusions:
- Freight, Installation, Electrical works
12-month warranty provided by seller
