Mining Belt Feed Hopper | up to 50TPH | Direct Feed |

($70,675 Inc. GST)

Confirm if additional costs apply

Specifications:

Description:

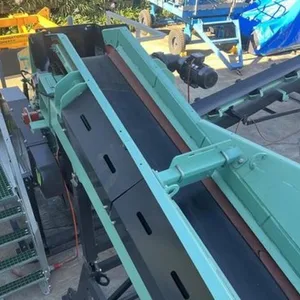

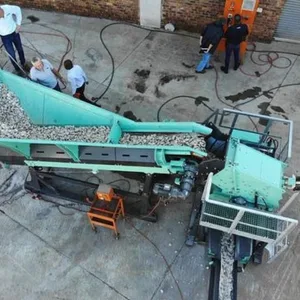

The MBF150 skid mounted belt feeder is designed to be loaded by front end loader or excavator and provides a surge capacity with a controlled feed output.

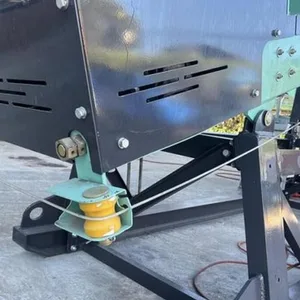

The MBF150 can accept up to 50tph at a max feed lump size of 150mm material. The MBF150 is supported on a heavy-duty support structure and fixed at an 18? angle. The design includes guarding, trip wires and features included to meet safety specification and build quality standards.

This complete module does not require any civils, simply a level compact surface for installation. It is perfectly suited for feeding into the IC50 Horizontal Shaft Impact crusher.

Technical Specifications:

• Maximum feed size of 150mm
• 600mm wide variable speed belt feeder
• Approximately 1.5m³ hopper capacity
• Throughput up to 50tph (material dependent)
• 3kW motor

Exclusions: Freight, Installation, Electrical works

Note: different paddles might need to be supplied, based on application. Unit can also be retrofitted with a pump for liquid waste recovery.

Please reach out to discuss your application or a site visit.

12-month warranty provided by seller

View Specs Sheet
