$184,180.00 + GST
($202,598 Inc. GST)
Confirm if additional costs apply
Specifications
Condition
New
Year:
2025
Make:
Pilot crushtec
Description

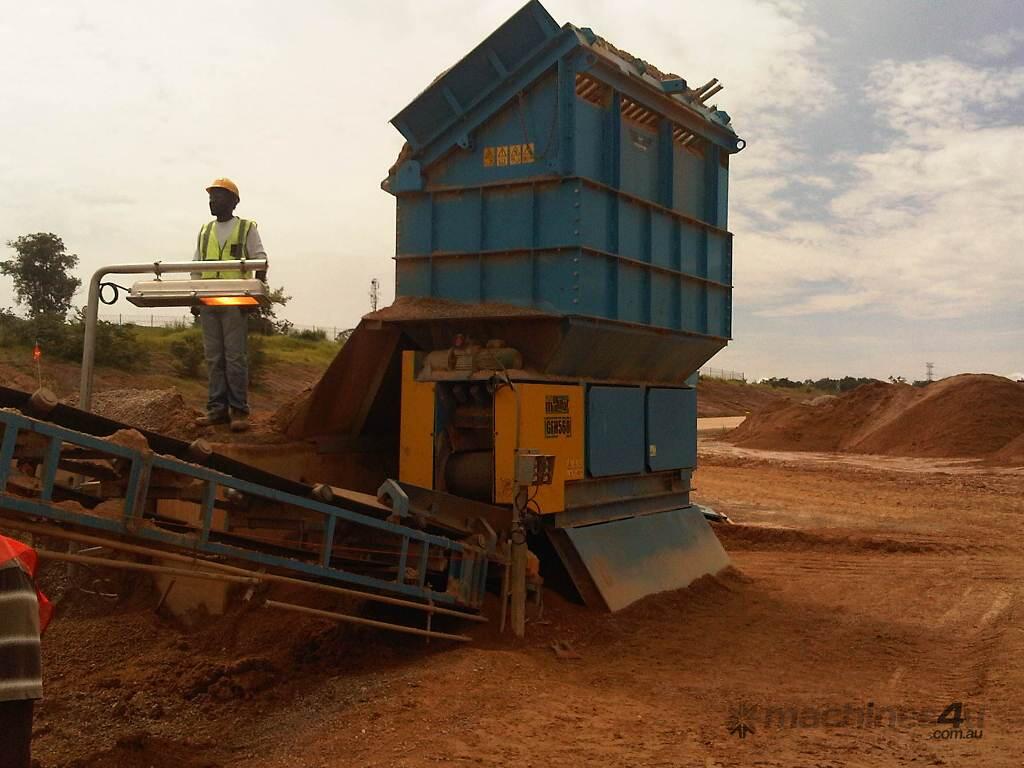

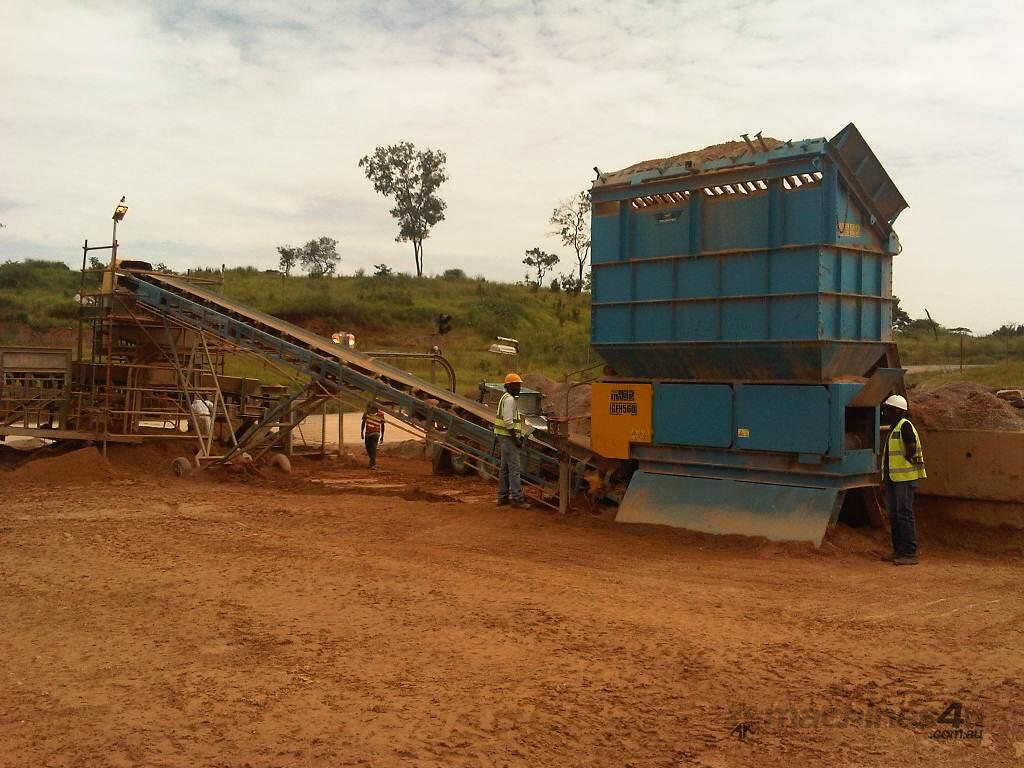

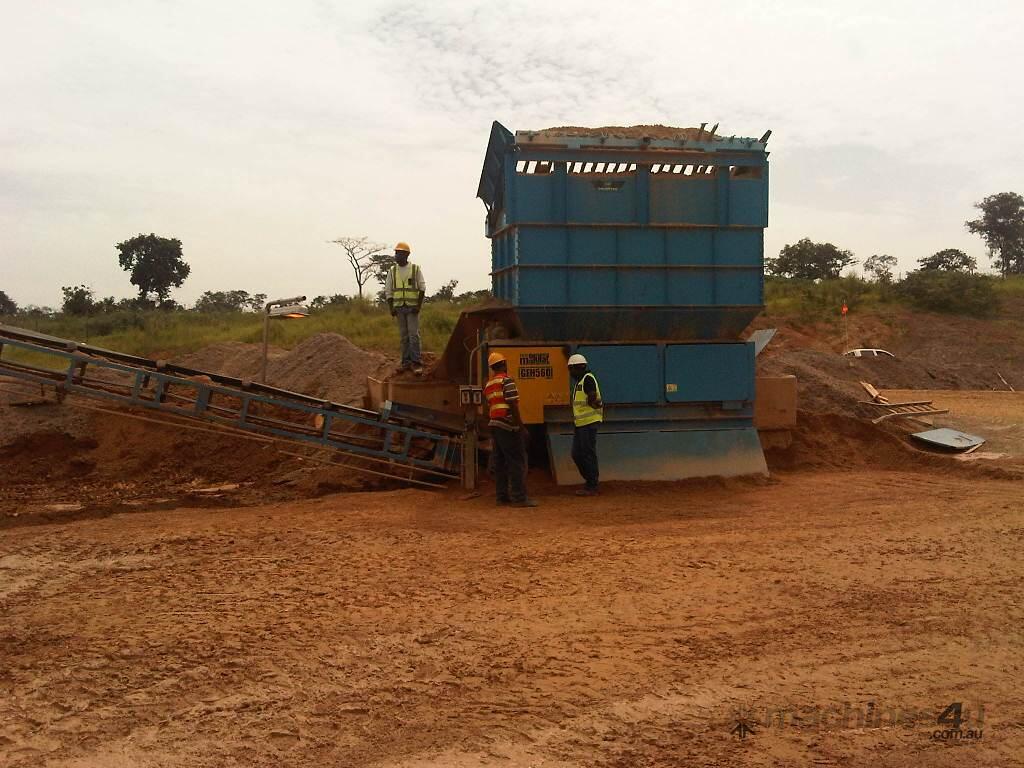

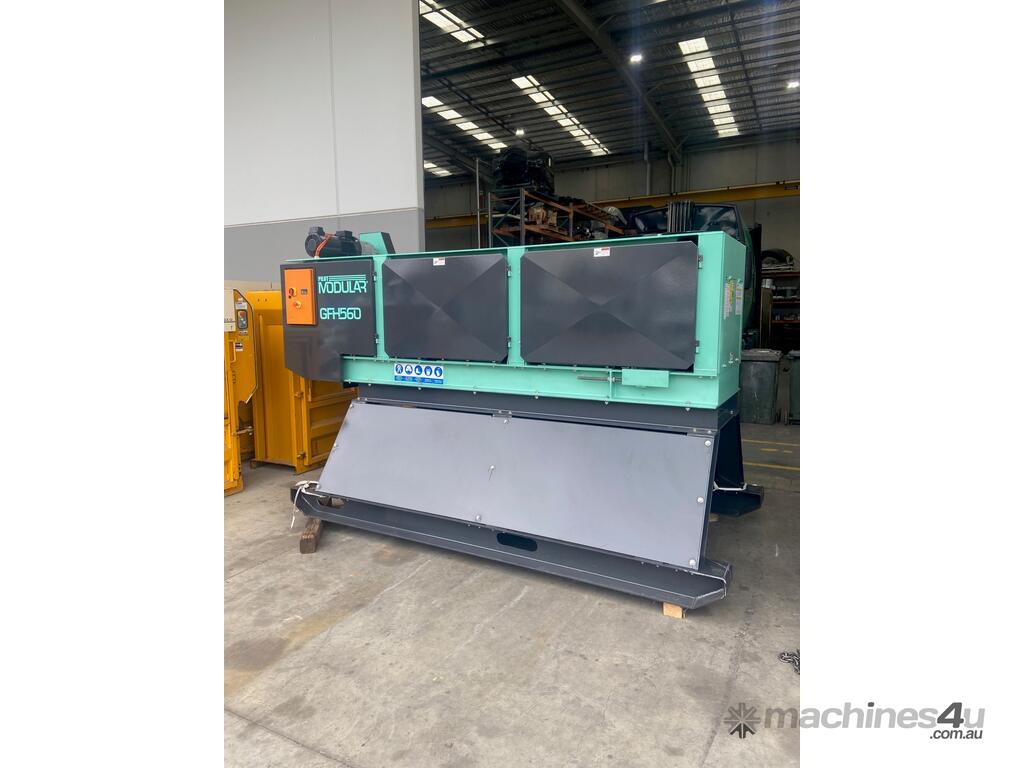

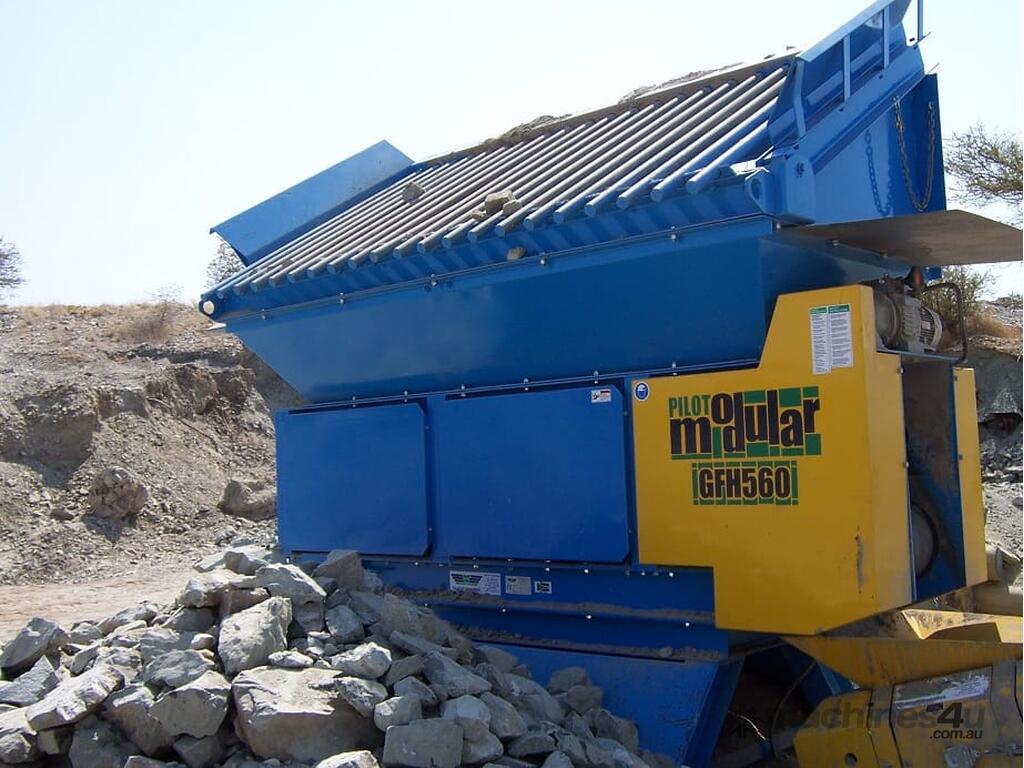

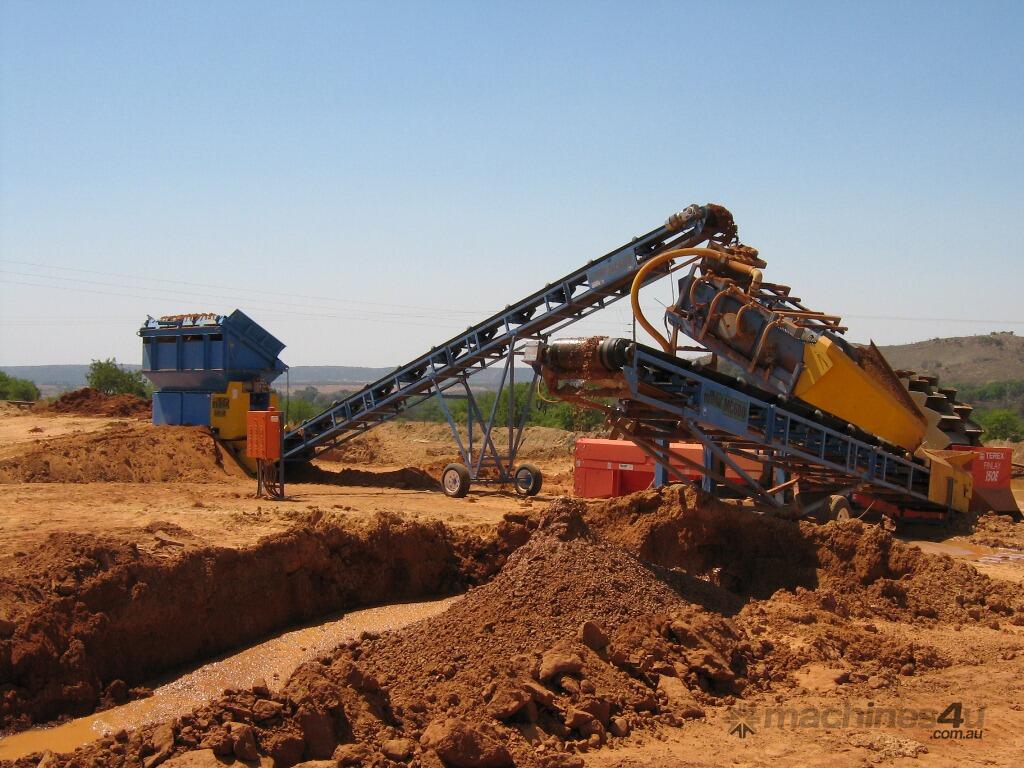

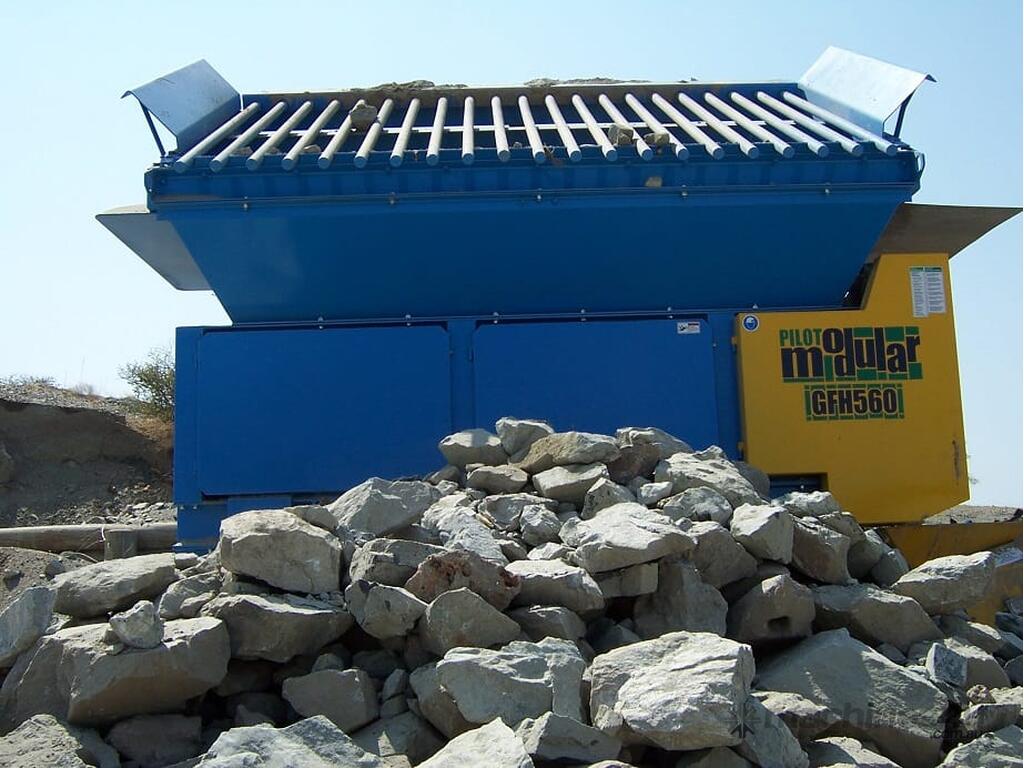

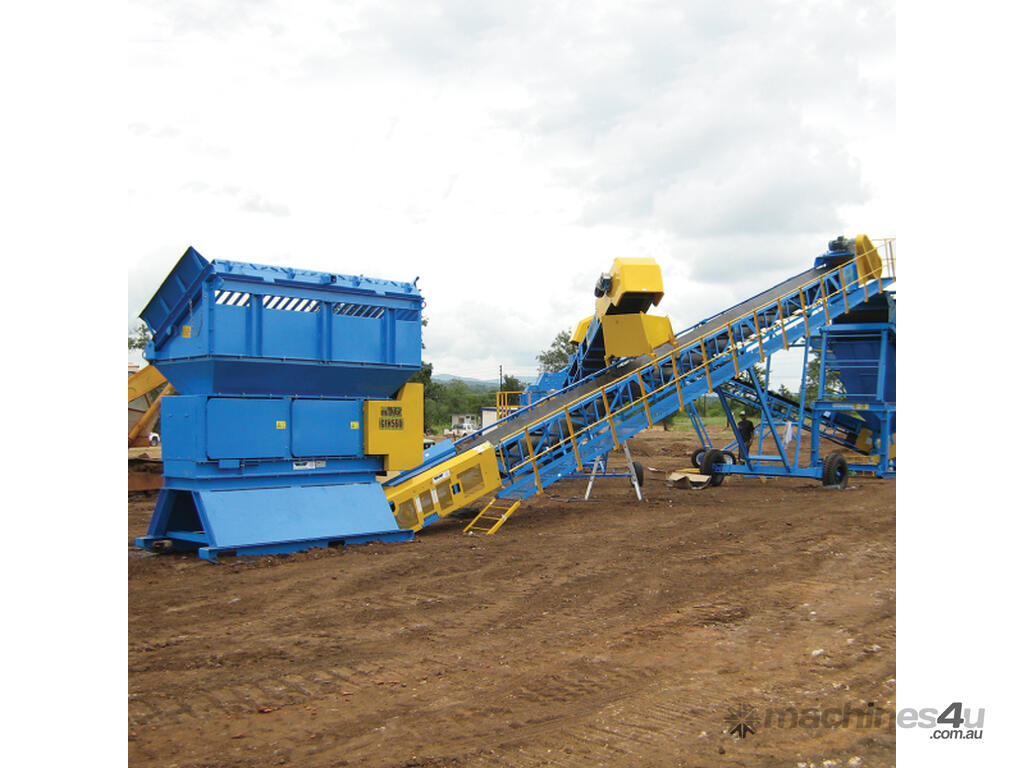

The GFH1000 is the larger version of the popular GFH560 and is also a skid mounted grizzly feed hopper is designed to scalp out +100mm material.
It is designed to be loaded by a front-end loader or excavator. It also provides a surge capacity and gives a controlled feed output.
Technical Specifications:
- Approximately 4.6m³ hopper capacity
- Approximately 8m³ surge capacity
- 1050mm wide variable speed belt feeder
- Easy access grease points

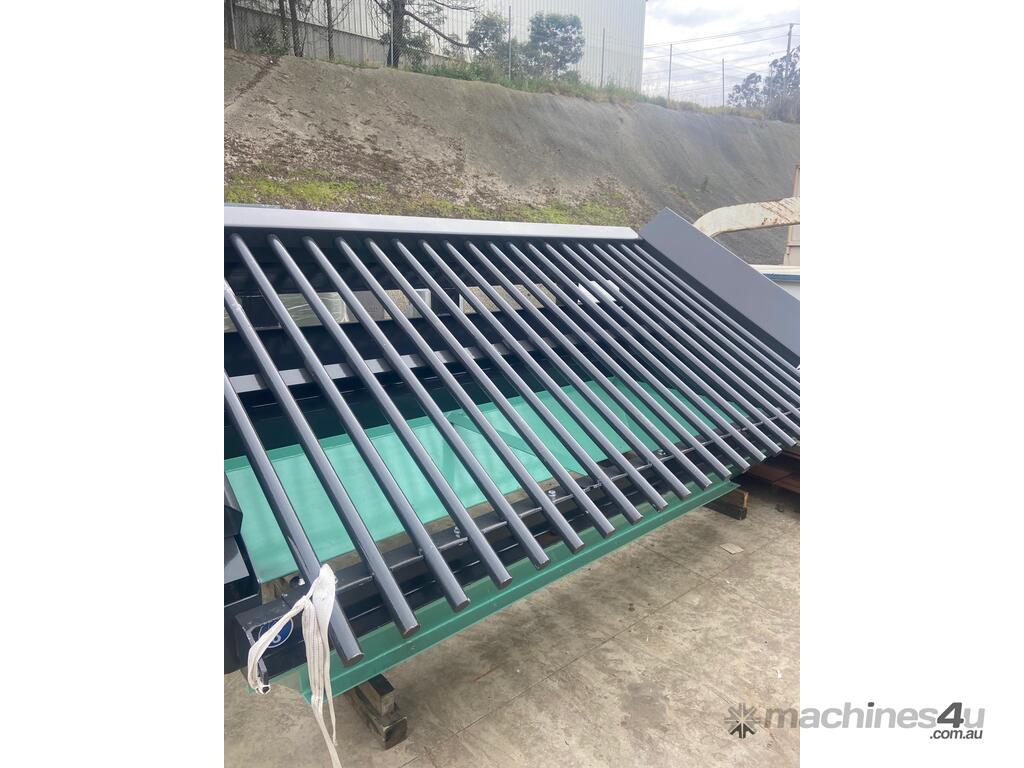

- Heavy-duty, manual tipping reject grid with grizzly bars set at 100mm spacing
- Throughput up to 500tph (material dependent)
- Maximum 300mm feed size
- 15kW motor
Dimensions:
– 3000mm wide x 5900mm long x 3900mm high
Options:
– 500mm extensions to increase hopper capacity
– Hydraulic operation of tipping grid
Price: from $184,180 + GST
Exclusions: Freight, Installation, Electrical works
12-month warranty provided by seller
