$143,490.00 + GST
($157,839 Inc. GST)
Confirm if additional costs apply
Specifications
Condition:
New
Year:
2025
Make:
Pilot crushtec
Description

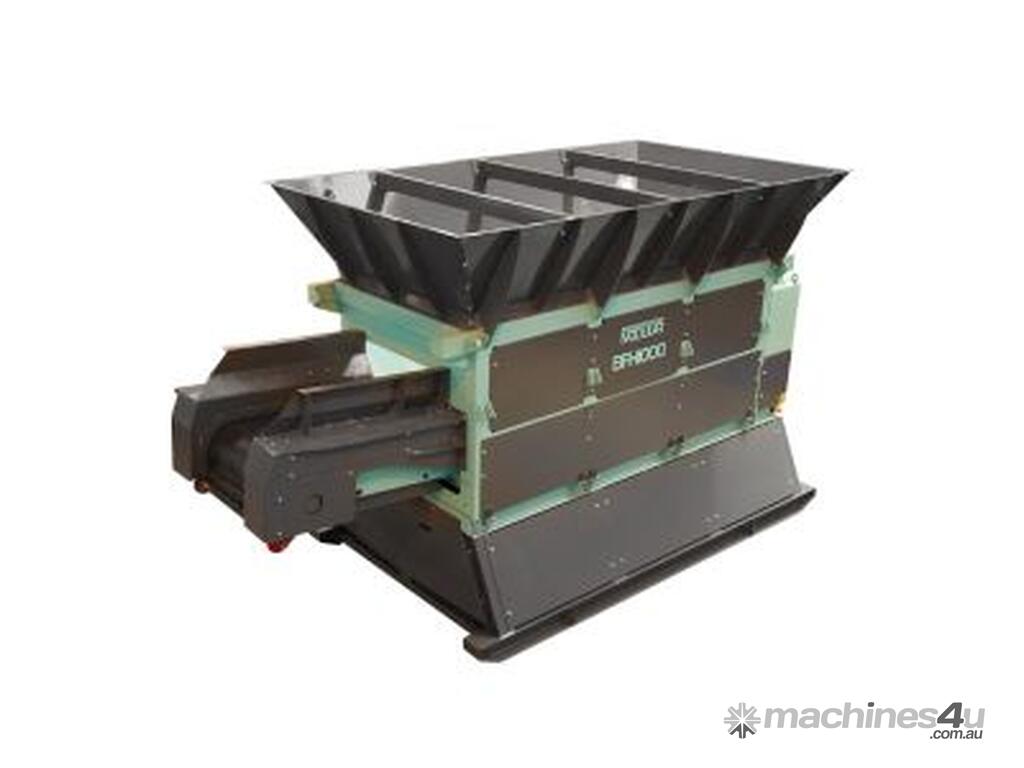

The BFH1000 is the larger version of the popular BFH560 and is also a skid mounted primary loading belt feed hopper.

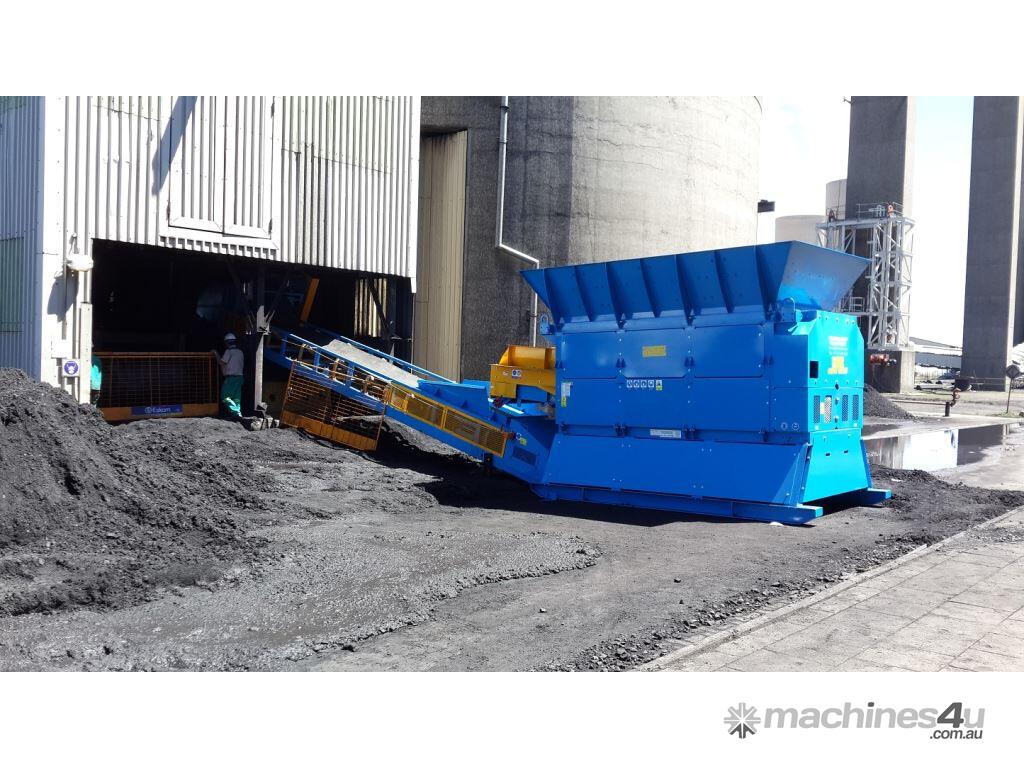

The surge hopper is the most sensible solution to ensuring a regulated feed into a processing plant. This skid mounted solution does not require any civils, simply a level compact surface for installation.
The BFH1000 is fitted with a surge hopper and a variable speed conveyor belt. It is designed to be loaded by front end loaders or excavators; and it provides a surge capacity and gives a controlled feed output discharge height ideally suited for the Pilot Crushtec MC750 conveyor belt.
Technical Specifications:
- Approximately 4.6m³ hopper capacity
- Approximately 8m³ surge capacity
- 1050mm wide variable speed belt feeder
- Easy access grease points
- Throughput up to 500tph (material dependent)
- Maximum 300mm feed size
- 15kW motor
Dimensions:
– 2550mm wide x 5900mm long x 3400mm high
Options:
– 500mm extensions to increase hopper capacity
Exclusions: Freight, Installation, Electrical works
12-month warranty provided by seller
